Results:

Mfr. Part #	Availability	Price	Quantity	Packaging	Series	ProductStatus	Type	Thread/Screw/HoleSize	Diameter-Inside	Diameter-Outside	Thickness	Plating

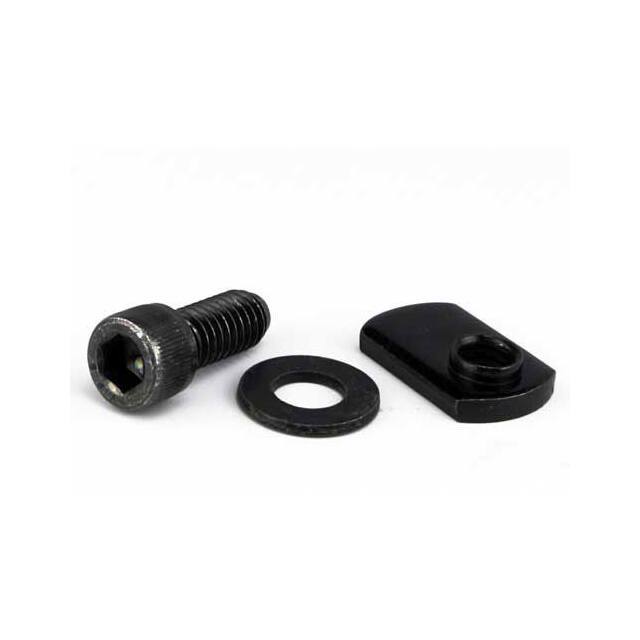

B797591 5/16-18 X 3/4 SHCS, WASHER AND 80/20 Inc.	2,538	2.35	RFQ	Box	-	Active	-	5/16-18	-	-	-	-

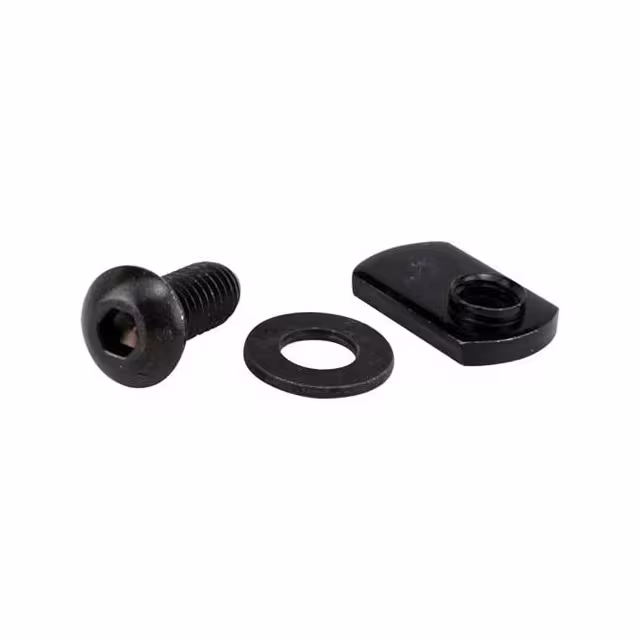

B797594 5/16-18 X 3/4 BHSCS, WASHER AND 80/20 Inc.	3,706	2.46	RFQ	Box	-	Active	-	5/16-18	-	-	-	-

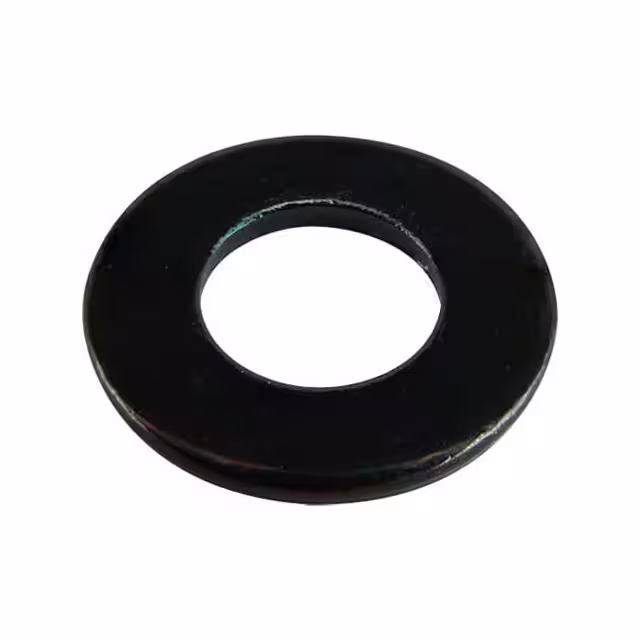

B797549 80/20 WASHER, 5/16 HOLE SIZE 80/20 Inc.	2,916	2.88	RFQ	Box	-	Active	-	-	0.313 (7.95mm) 5/16	-	-	-

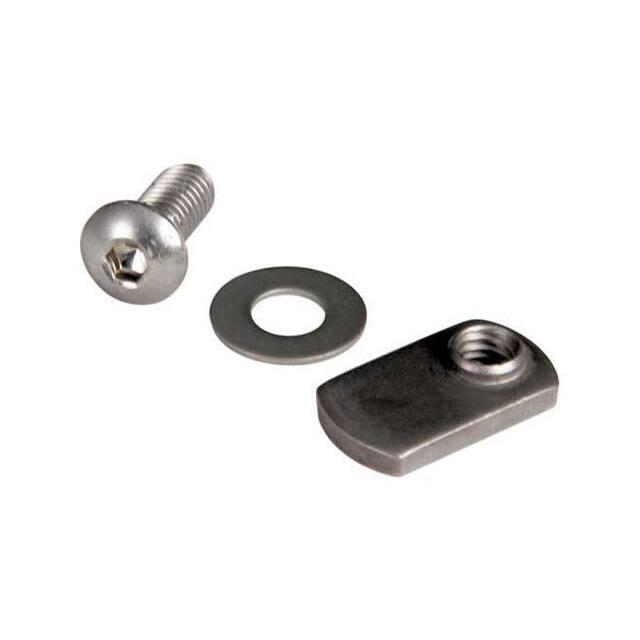

B797538 5/16-18 X 3/4 BHSCS, WASHER AND 80/20 Inc.	3,460	3.11	RFQ	Box	-	Active	-	5/16-18	-	-	-	-
B797567 5/16-18 X 5/8 SHCS, WASHER AND 80/20 Inc.	2,391	3.28	RFQ	Box	-	Active	-	5/16-18	-	-	-	-

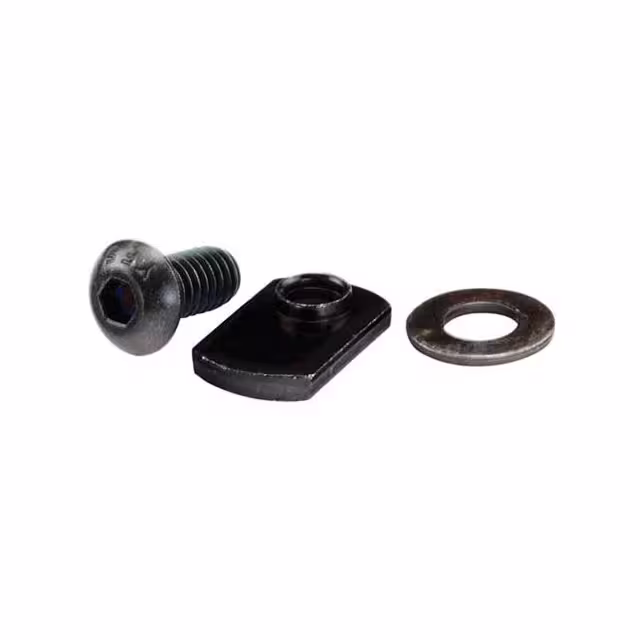

B797669 5/16-18 X 5/8 BHSCS, WASHER AND 80/20 Inc.	2,291	3.34	RFQ	Box	-	Active	-	5/16-18	-	-	-	-

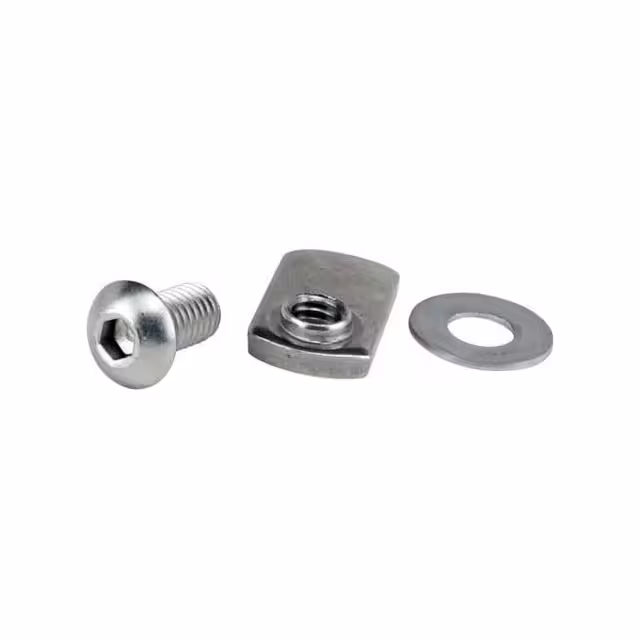

B797433 5/16-18 X 5/8 BHSCS, WASHER AND 80/20 Inc.	2,282	3.56	RFQ	Box	-	Active	-	5/16-18	-	-	-	-
