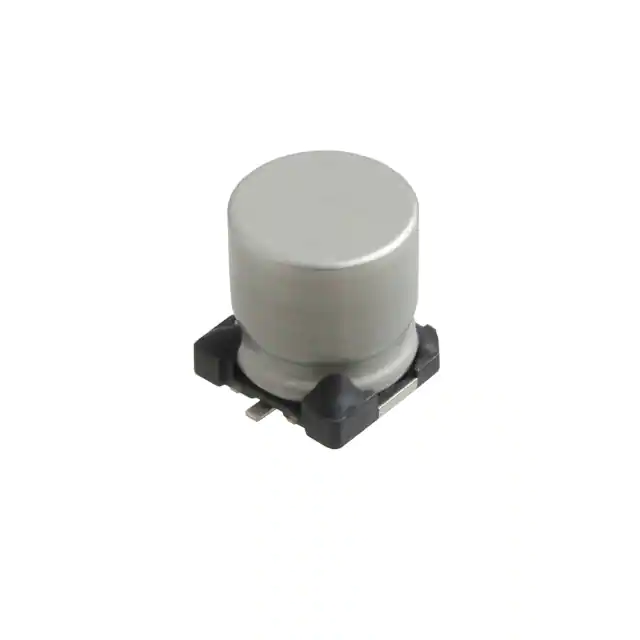

Panasonic Electronic Components EEE-HB1C330AP

Part No.:: EEE-HB1C330AP

Manufacturer:: Panasonic Electronic Components

Category:: Aluminum Electrolytic Capacitors

Package:

Datasheet:: EEE-HB1C330AP.pdf

Description:: CAP ALUM 33UF 20% 16V SMD

Quantity:: RFQ

Payment:

Shipping:

Product details

Packaging:
Tape & Reel (TR),Cut Tape (CT)
Series:
HB
ProductStatus:
Active
Capacitance:
33 µF
Tolerance:
±20%
Voltage-Rated:
16 V
ESR(EquivalentSeriesResistance):
-
Lifetime@Temp:
2000 Hrs @ 105°C
OperatingTemperature:
-40°C ~ 105°C
Polarization:
Polar
Ratings:
AEC-Q200
Applications:
Automotive
RippleCurrent@LowFrequency:
65 mA @ 120 Hz
RippleCurrent@HighFrequency:
110.5 mA @ 10 kHz
Impedance:
-
LeadSpacing:
-
Size/Dimension:
0.248 Dia (6.30mm)
Height-Seated(Max):
0.228 (5.80mm)
SurfaceMountLandSize:
0.260 L x 0.260 W (6.60mm x 6.60mm)
MountingType:
Surface Mount
Category:
Aluminum Electrolytic Capacitors
Datasheet:

EEE-HB1C330AP.pdf
