Name: AM1SS-0509SJZ
Brand: aimtec
SKU: AM1SS-0509SJZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Item(s)

All Product

More product categories >>

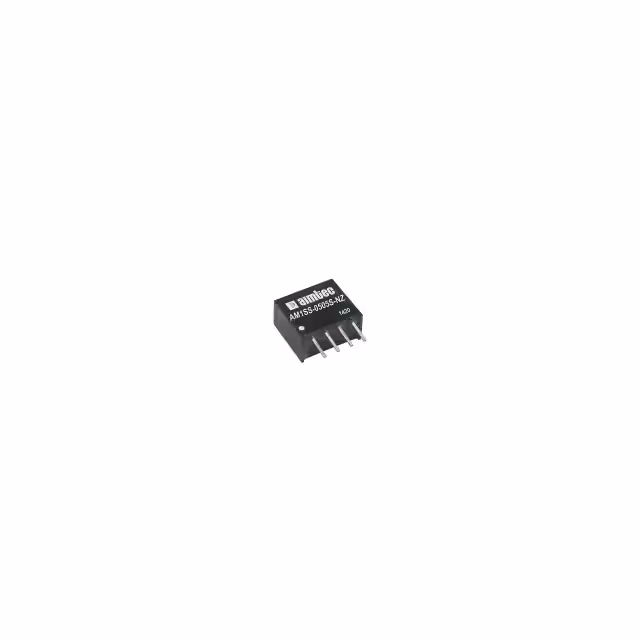

aimtec AM1SS-0509SJZ

Part No.:: AM1SS-0509SJZ

Manufacturer:: aimtec

Category:: DC DC Converters

Package:: 4-SIP Module

Datasheet:: AM1SS-0509SJZ.pdf

Description:: DC DC CONVERTER 9V 1W

Quantity:: RFQ

Payment:

Shipping:

Product details

Package/Case:
4-SIP Module
Packaging:
Tube
Series:
AM1SS-NZ (1W)
ProductStatus:
Active
Type:
Isolated Module
NumberofOutputs:
1
Voltage-Input(Min):
4.5V
Voltage-Input(Max):
5.5V
Voltage-Output1:
9V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
111mA
Power(Watts):
1 W
Voltage-Isolation:
1.5 kV
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 105°C
Efficiency:
83%
MountingType:
Through Hole
Size/Dimension:
0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
ControlFeatures:
ApprovalAgency:
Category:
DC DC Converters
Datasheet:

AM1SS-0509SJZ.pdf
