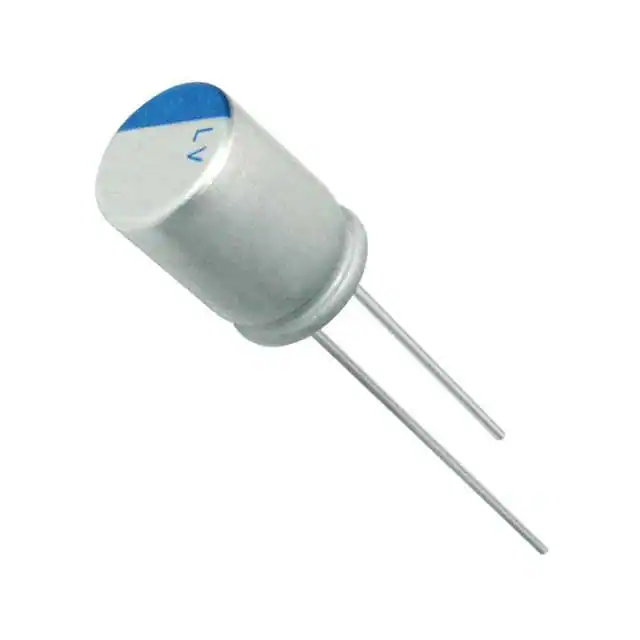

Nichicon PLV1J470MDL1TD

Part No.:: PLV1J470MDL1TD

Manufacturer:: Nichicon

Category:: Aluminum - Polymer Capacitors

Package:

Datasheet:: PLV1J470MDL1TD.pdf

Description:: CAP ALUM POLY 47UF 20% 63V T/H

Quantity:: RFQ

Payment:

Shipping:

Product details

Packaging:
Cut Tape (CT),Tape & Box (TB)
Series:
PLV
ProductStatus:
Not For New Designs
Type:
Polymer
Capacitance:
47 µF
Tolerance:
±20%
Voltage-Rated:
63 V
ESR(EquivalentSeriesResistance):
29mOhm
Lifetime@Temp:
3000 Hrs @ 105°C
OperatingTemperature:
-55°C ~ 105°C
Ratings:
-
Applications:
General Purpose
Features:
-
RippleCurrent@LowFrequency:
-
RippleCurrent@HighFrequency:
2.6 A @ 100 kHz
Impedance:
-
LeadSpacing:
0.197 (5.00mm)
Size/Dimension:
0.394 Dia (10.00mm)
Height-Seated(Max):
0.512 (13.00mm)
SurfaceMountLandSize:
-
MountingType:
Through Hole
Category:
Aluminum - Polymer Capacitors
Datasheet:

PLV1J470MDL1TD.pdf
