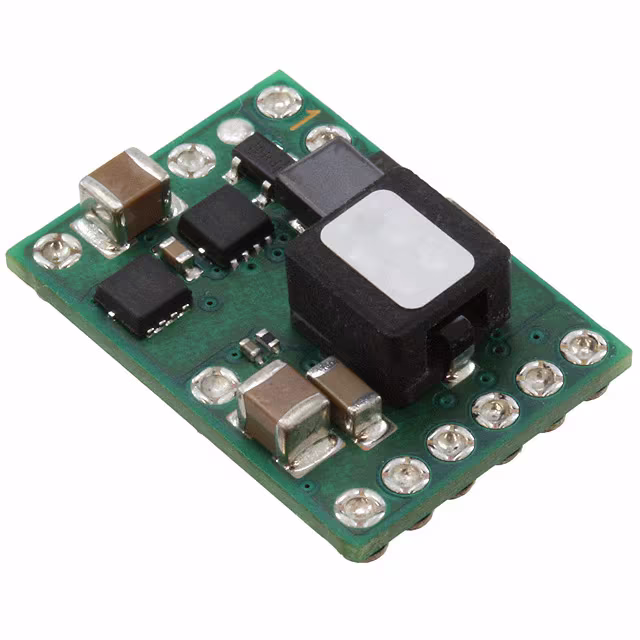

Texas Instruments PTH04T241WAD

Part No.:: PTH04T241WAD

Manufacturer:: Texas Instruments

Category:: DC DC Converters

Package:: 11-DIP Module

Datasheet:: PTH04T241WAD.pdf

Description:: DC DC CONVERTER 0.69-3.6V

Quantity:: RFQ

Payment:

Shipping:

Product details

Package/Case:
11-DIP Module
Packaging:
Tray
Series:
PTH04T241W
ProductStatus:
Active
Type:
Non-Isolated PoL Module
NumberofOutputs:
1
Voltage-Input(Min):
2.2V
Voltage-Input(Max):
5.5V
Voltage-Output1:
0.69 ~ 3.6V
Voltage-Output2:
-
Voltage-Output3:
-
Voltage-Output4:
-
Current-Output(Max):
10A
Power(Watts):
-
Voltage-Isolation:
-
Applications:
ITE (Commercial)
Features:
-
OperatingTemperature:
-40°C ~ 85°C
Efficiency:
94%
MountingType:
Through Hole
Size/Dimension:
0.87 L x 0.62 W x 0.33 H (22.1mm x 15.7mm x 8.4mm)
ControlFeatures:
ApprovalAgency:
Category:
DC DC Converters
Datasheet:

PTH04T241WAD.pdf
