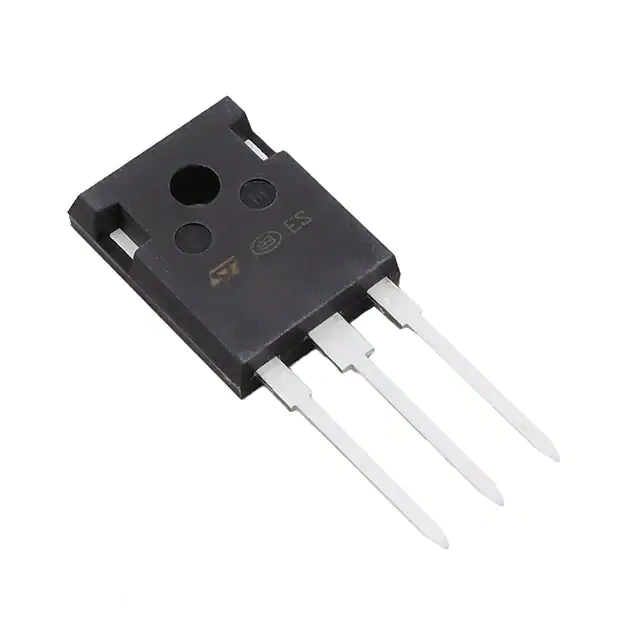

STMicroelectronics SCT20N120

Part No.:: SCT20N120

Manufacturer:: STMicroelectronics

Category:: Transistors - FETs, MOSFETs - Single

Package:: HiP247™

Datasheet:: SCT20N120.pdf

Description:: SICFET N-CH 1200V 20A HIP247

Quantity:: RFQ

Payment:

Shipping:

Product details

Packaging:
Tube
Series:
-
ProductStatus:
Active
FETType:
N-Channel
Technology:
SiCFET (Silicon Carbide)
DraintoSourceVoltage(Vdss):
1200 V
Current-ContinuousDrain(Id)@25°C:
20A (Tc)
DriveVoltage(MaxRdsOnMinRdsOn):
20V
RdsOn(Max)@IdVgs:
290mOhm @ 10A, 20V
Vgs(th)(Max)@Id:
3.5V @ 1mA
GateCharge(Qg)(Max)@Vgs:
45 nC @ 20 V
Vgs(Max):
+25V, -10V
InputCapacitance(Ciss)(Max)@Vds:
650 pF @ 400 V
FETFeature:
-
PowerDissipation(Max):
175W (Tc)
OperatingTemperature:
-55°C ~ 200°C (TJ)
MountingType:
Through Hole
Category:
Transistors - FETs, MOSFETs - Single
Datasheet:

SCT20N120.pdf
